Cerbere Security SC is a high-tech distributor offering a comprehensive range of products in intrusion protection, fire safety, EV charging stations, batteries, and a wide selection of accessories compatible with all our solutions.

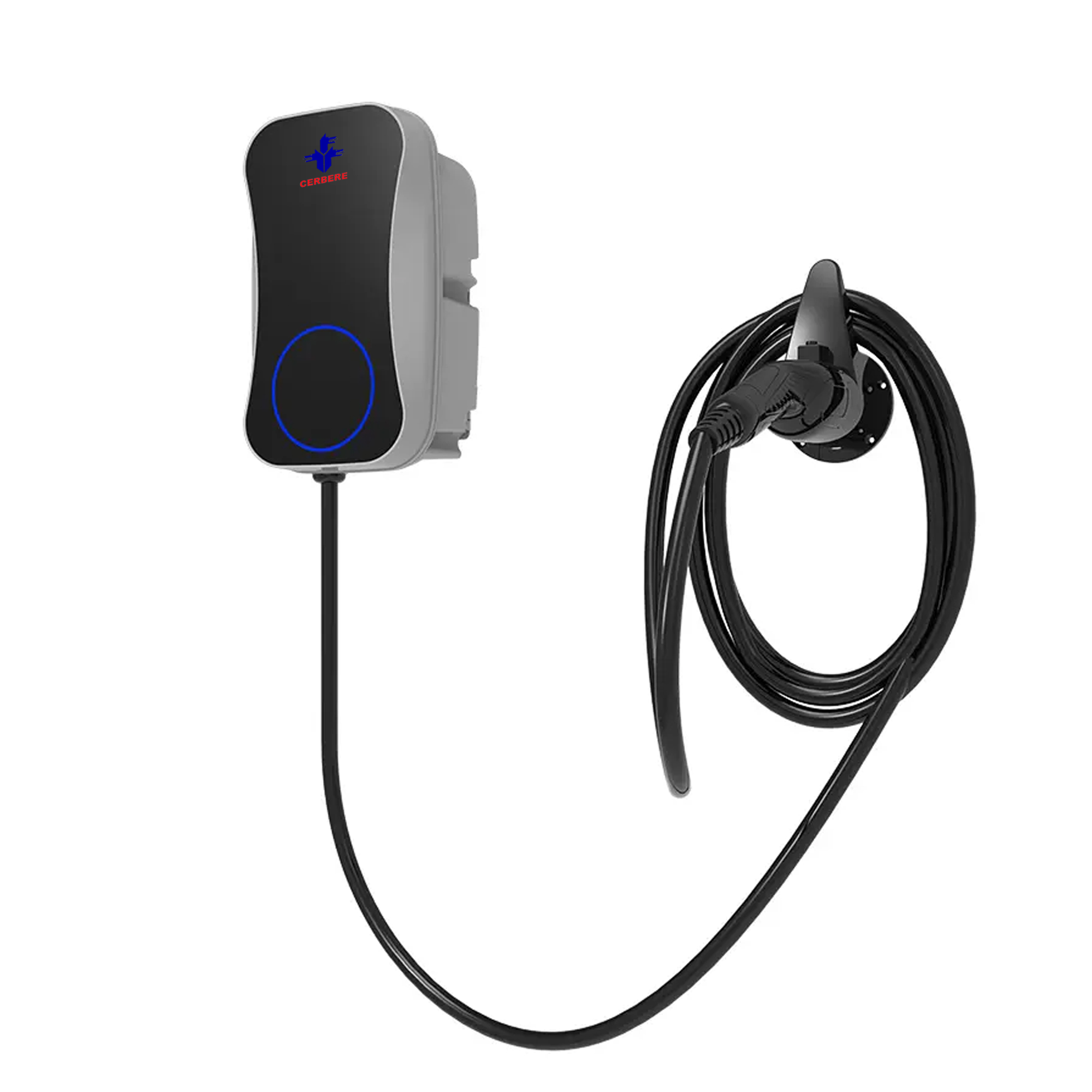

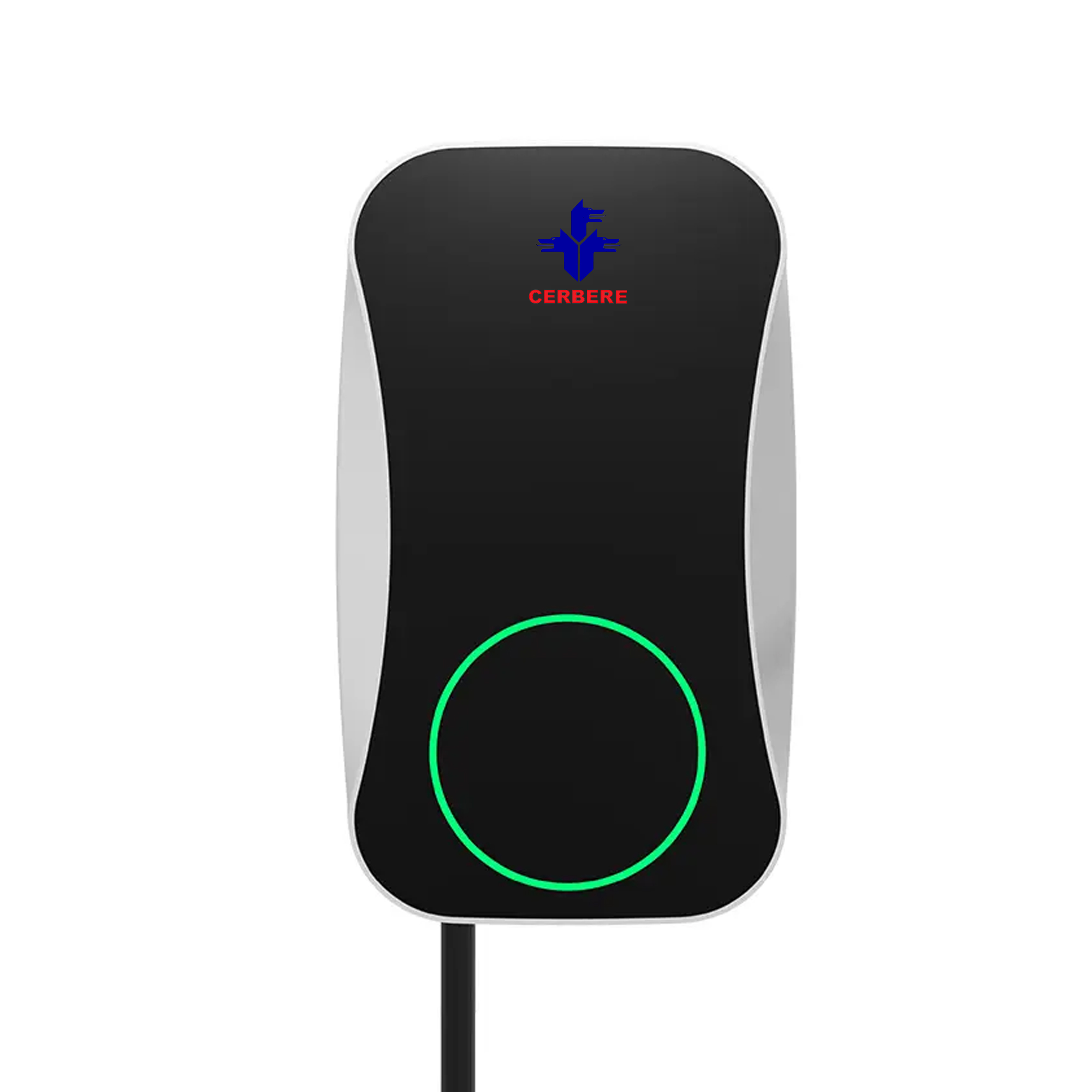

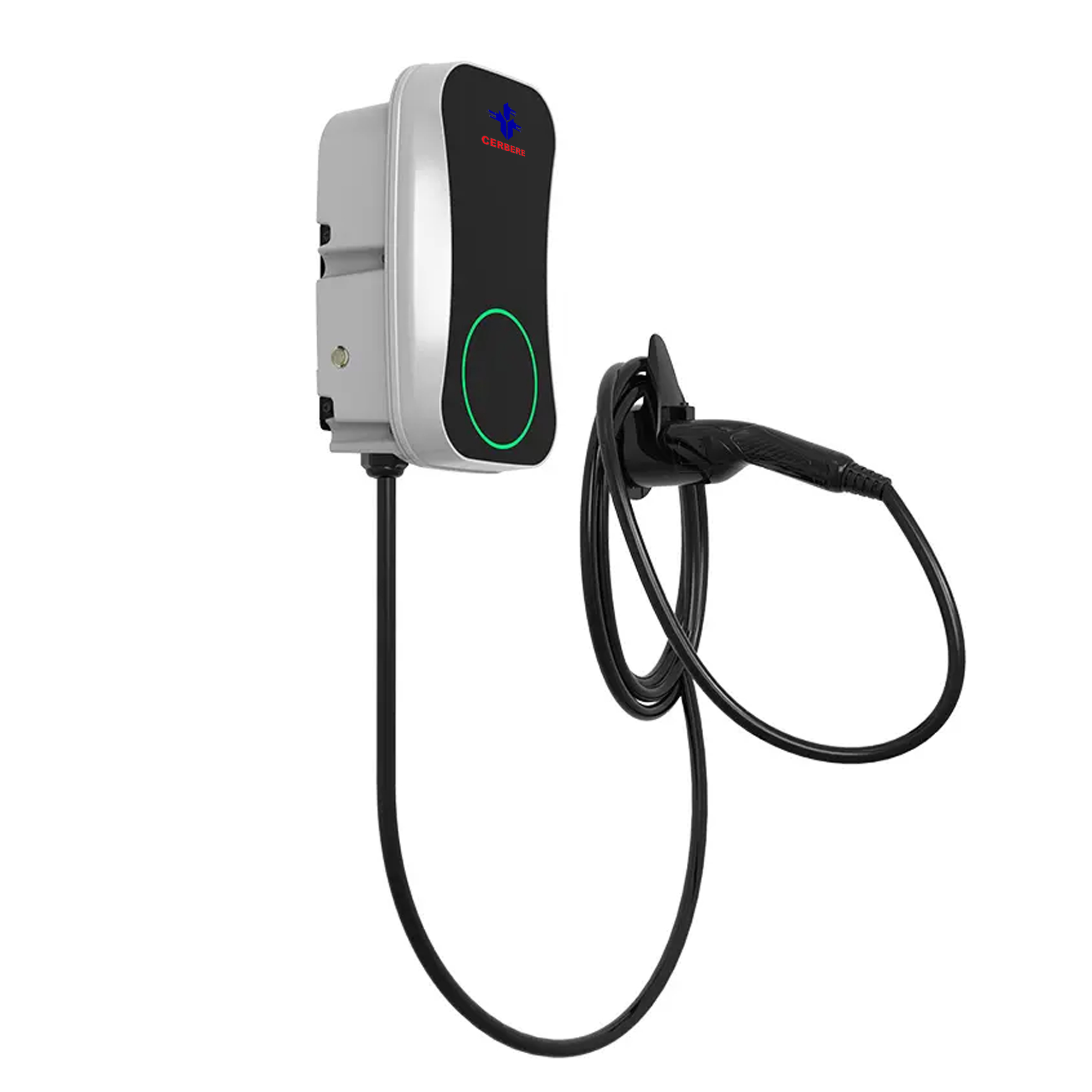

With models offering up to 7.4 kW or 22 kW, these smart, modern, and cost-effective charging stations are designed to provide electric vehicle drivers with an affordable charging solution without compromising on quality.
They are compatible not only with all electric vehicles (EVs) and plug-in hybrid vehicles (PHEVs) on the market, but also with solar energy.
A smart app allows you to have full control over your charging station :
Features
– Universal charging socket or attached Type 2 cable
– Available power: up to 7.4 kW or 22 kW depending on the model
– Adjustable power: 10A, 13A, 16A, and 32A
– Smart app via Wi-Fi
– Charging scheduling / Off-peak charging
– Compatible with solar energy (single-phase models only)
– Protection against PEN faults and residual current (AC 30 mA Type A, DC 6 mA)
– Équilibrage dynamique de la charge (pinces ampèremétriques et câbles inclus)
– Compliant with OCPP 1.6 standard
– Built-in LED indicator for charging status
Compliant with UK regulations for smart charging stations, including anti-tamper safety
Wi-Fi / Ethernet Connectivity
Protection rating: IP54 (water and dust resistance) and IK08 (impact resistance)
-Alimentation : 3P+N+PE
Nominal voltage: AC380~415V 50/60Hz
Rated current: Max 32A (adjustable from 6 to 32A)
Output voltage: AC380~415V 50/60Hz
Maximum current: Max 32A (adjustable from 6 to 32A)
Rated power: 22 kW
Charger socket or connector: Type 2
Color: Black + Gray
-Couleur : Noir + Gris
-Voyant lumineux : LED
Protection rating:
PCB protection:
Overcurrent protection, Max 32A – Recommended 36A
Residual current protection AC TYPE A 30mA, DC 6mA
Grounding check
Overvoltage/undervoltage protection
Overheat protection
Certifications: CE, UKCA
Certification standards: EN 61851, EN 62196
Standby power consumption: <10W

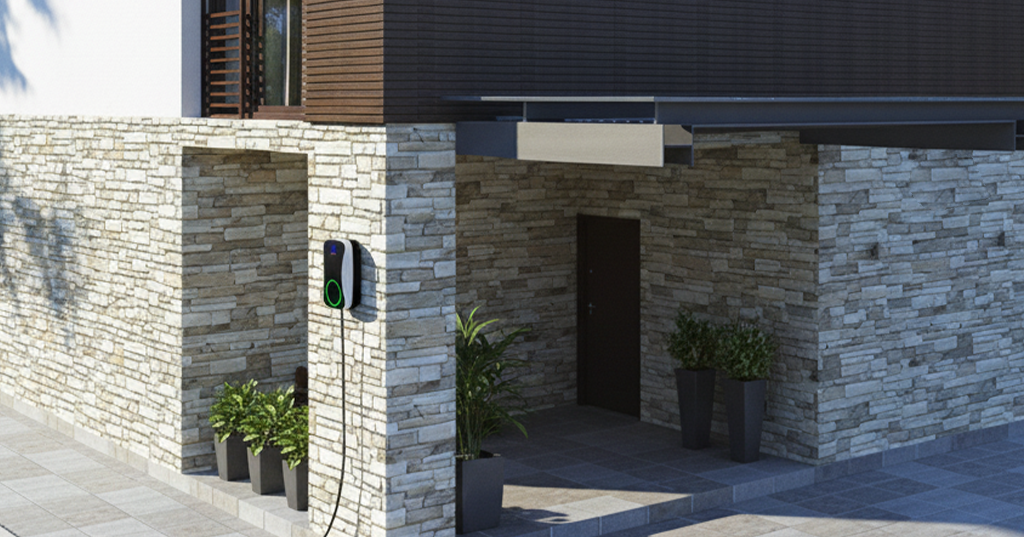

Installation: Wall-mounted
Operating temperature: -25 ~ 50°C
Operating humidity: 3% ~ 95%
Operating altitude: <2000 m
The enclosure, rated IP54 waterproof, is made of durable ABS and polycarbonate,
allowing it to withstand the harshest weather conditions
for many years.
Our charging stations are equipped with the latest safety features and are fully compliant with the latest regulations for smart charging stations, including safety logs and alerts.
This product is compatible with the OCPP 1.6J communication protocol. Once the IP and ID are configured via the app and the network cable is connected to the Ethernet interface, the product automatically connects to the server to enable remote control.
To configure the IP and ID, please go to the app settings.
Our charging stations are equipped with the latest safety features and are fully compliant with the latest regulations for smart charging stations, including safety logs and alerts.
This product is compatible with the OCPP 1.6J communication protocol. Once the IP and ID are configured via the app and the network cable is connected to the Ethernet interface, the product automatically connects to the server to enable remote control.
To configure the IP and ID, please go to the app settings.
– Up to 22 kW (three-phase) or 7.4 kW (single-phase)
– Adjustable current: 10A / 13A / 16A / 32A
– Charging scheduling
– Energy consumption monitoring
– Power adjustment
– Wi-Fi and Ethernet compatible
– Compliant with Smart Charge Point and OCPP 1.6J standards
– Protection against electrical faults (PEN, AC/DC residual current)
– RFID function: secure start and stop via card
– Compatible with all electric and plug-in hybrid vehicles (EV/PHEV)
– Type 2 socket
– Solar-ready (single-phase models)
– Wall-mounted installation
– Digital display with real-time charging indicator
– LED light ring to indicate charging status
